How to Replace a Dexp Dryer Belt

One common cause of dryer malfunction is wear and tear on the drive belt, which is responsible for rotating the drum. A broken belt can cause the dryer to stop working completely, while a stretched belt can reduce efficiency. To restore proper operation, the Dexp dryer belt needs to be replaced. In today's article, we'll discuss how to remove the broken belt and replace it with a new one.

We remove the old belt

The drive belt is a rubber component that transmits mechanical energy from the electric motor to the dryer drum. It can wear out or break from time to time, causing the dryer to malfunction. To replace the drive belt, you first need to find the right part. There are several options for finding one:

• Home appliance stores. Specialized stores may be able to offer you a genuine drive belt for your dryer model. However, there's a catch: the prices for components may be inflated.
• Online stores. You can find a huge selection of spare parts for household appliances online. Find your dryer model, choose the right drive belt, and order it with home delivery.

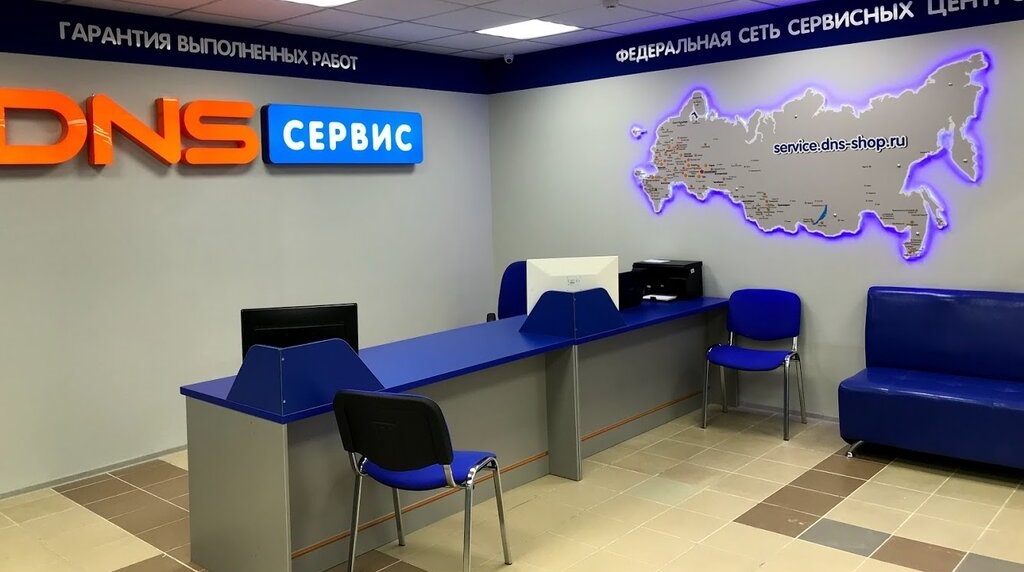

• Service centers. If you don't want to replace the part yourself, you can always contact a service center. They will help you select and install a new belt.

However, replacing the part on your dryer doesn't require professional help. You can easily do it yourself. To complete the task successfully, you'll only need a basic set of tools. However, remember that the removal process may vary depending on your dryer model, so always refer to the manual to avoid any problems.

To avoid the risk of electric shock, be sure to disconnect the equipment from the power supply before starting work!

You'll also need easy access to the dryer, so you'll need to move it away from the wall. This will allow you to easily access the side of the unit you're interested in. You'll need to:

• Using a screwdriver, disconnect all fasteners that go along the dryer body;
• remove the top cover and then the back wall of the case;
• Having found the belt, remove it;
• clean the area where the part was located from dust and dirt;
• install a new belt.

The new element should wrap easily around the drum—be sure to check the belt for a tight fit: it shouldn't slip or twist as it rotates. Now that the element is installed, you can return everything to its original position. Plug in the dryer and test its operation. To do this, you'll need to run a test drying cycle.

If you can't find an original belt, or you're looking to save money, there are other options. There aren't many, but they exist. Consider:

• universal belt;
• element from another model;
• car belt.

A universal belt can be purchased at hardware stores. By selecting a part of the required length and width, you can replace the original part. However, keep in mind that such a belt may not be able to withstand loads very well. You can also try using a belt from a different model, but it's important to consider its specifications. The part may simply not fit.

Sometimes, finding the necessary spare part is extremely difficult. Alternative solutions are often necessary, such as using a car belt instead of the standard one. However, it's important to understand that this is a temporary solution, and it's best to purchase the correct drive belt for your dryer. It has special characteristics that ensure proper adhesion and transmission of power between the two rotating elements. Using the wrong part can lead to improper operation of the appliance, wear on other components, and even failure of the belt itself.

Installing a new belt

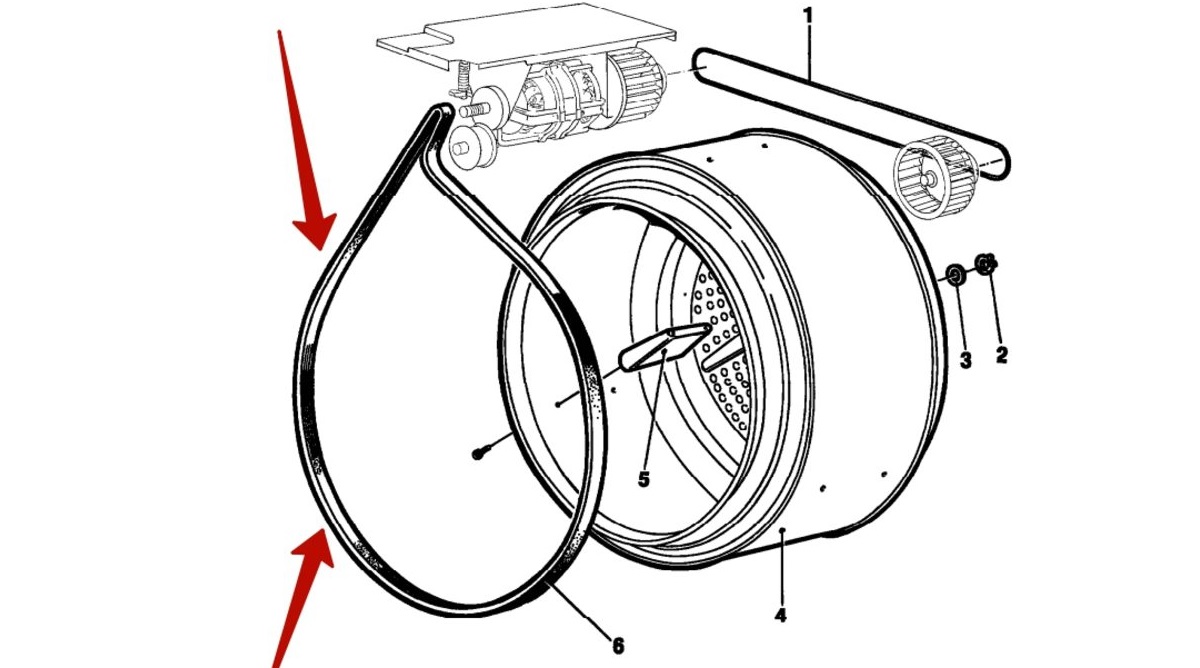

As you've already understood, the drive belt is responsible for transmitting motion from the electric motor to the machine's drum. If it breaks, the drum will stop rotating, which negatively impacts the machine's performance. Therefore, it's important to replace the drive belt with a new one in a timely manner. The replacement process on a Dexp dryer is quite simple and doesn't require any special skills. Below is a step-by-step guide:

• loosen the tension roller and remove the belt;
• carefully remove it from the dryer;

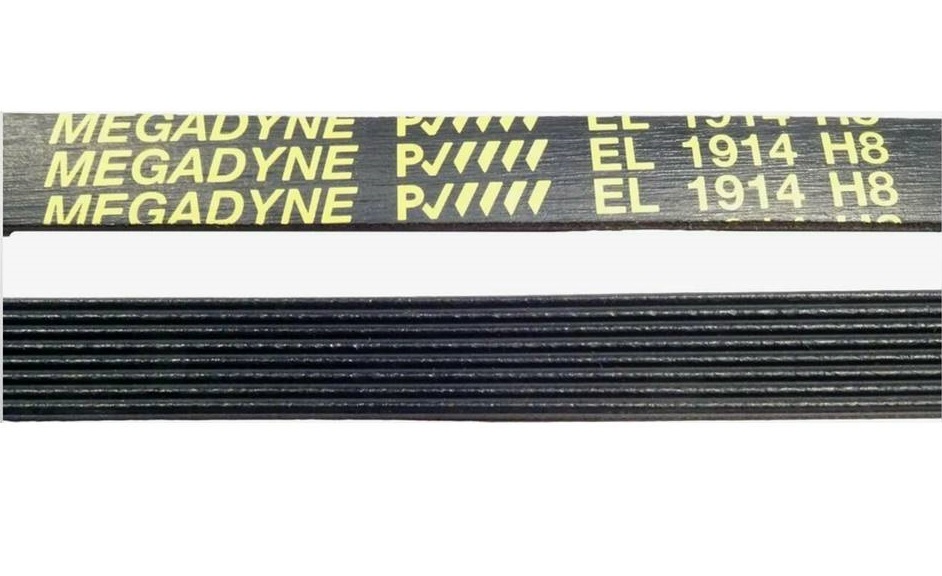

• Make sure the new element has the same dimensions and characteristics as the old one;

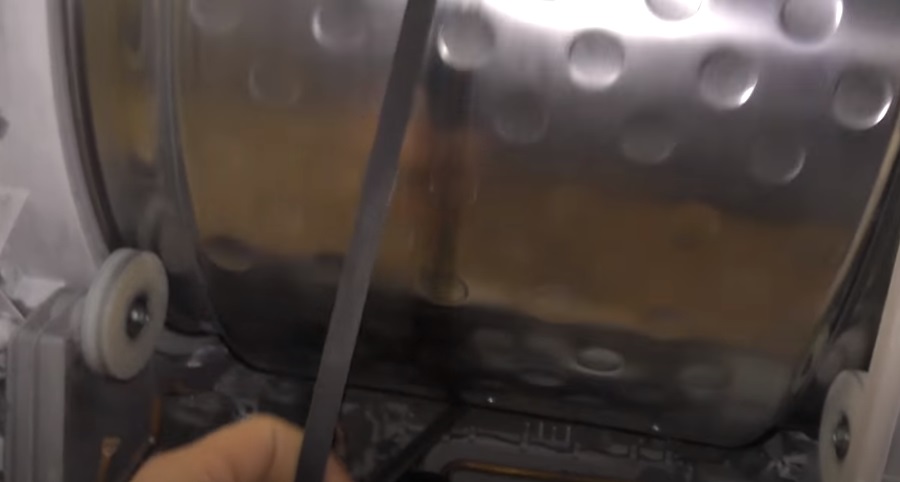

• After this, put the belt on the pulleys of the device;
• Tighten it so that it does not slip off the pulleys, but at the same time does not overtighten the drum.

Check that the element is installed correctly. To do this, you'll need to turn the dryer handle and make sure the belt moves correctly. Now you know how to install this part in your "home helper."

Don't forget to also monitor the condition of your dryer's belt. At the first sign of wear or damage, it's recommended to replace it immediately. This will prevent further damage.

Why did the part fail?

Belt problems can occur for a variety of reasons. Therefore, it's crucial to understand them in order to respond appropriately. Drive belt failure can be caused by:

• natural wear and tear;
• wrong type of belt;
• poorly tensioned element;
• overloading the dryer;
• clogging of the ventilation wheel.

Remember: failure may be caused by faulty other parts!

Therefore, before replacing a component, it's essential to conduct a thorough diagnosis. Only then should appropriate action be taken. The problem may lie in the drum rollers.

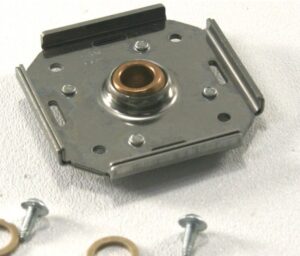

These components perform an important function: they help the drum rotate, relieving some of the load on the motor and belt. However, like any other component, the rollers wear out over time: flat spots develop on them, which can temporarily prevent proper rotation. To prevent the problem from recurring, it is recommended to replace not only the belt but also the rollers themselves.

A clogged fan wheel may also be the cause of the problem. While not directly related to the dryer belt, dust accumulation, for example, can prevent proper heat distribution throughout the drum. When dust exits the rear of the fan and is directed toward various parts of the unit, including the belt, it can lead to gradual heating, which in turn causes expansion or creates additional resistance, accelerating belt wear.

Lint and dirt buildup is also common. Dryers are equipped with lint filters, which are designed to trap tiny fabric fibers and dust released by clothes during the drying process. This prevents lint from accumulating in the knots.

To maintain optimal dryer performance, clean the filter periodically. If neglected, lint can become lodged in other parts of the dryer, causing clogs. These clogs can reduce dryer efficiency, cause additional friction, and place unnecessary strain on the belt.

The felt seal may also be damaged. You may have noticed a felt seal inside the door of the machine. This component is designed to minimize friction during drum operation. Since it is the contact point, it can wear out over time or be damaged by impact.

When the felt seal fails, the dryer drum comes into direct contact with the front panel, which increases the load on the motor and belt. Overloading the drum is also a common problem. Many dryer manufacturers warn against filling the drum completely. This increases the load on the parts and contributes to their rapid wear. If you're one of those people who like to load a lot of clothes into the machine, keep in mind that your habit will eventually wear out the belt.

The belt may not be tensioned correctly. For optimal dryer performance, it's important that the drive element is installed according to professional recommendations. Insufficient tension can cause slipping and poor drum rotation, while excessive tension can overload the belt, leading to rapid wear or even failure.

It's important to understand that using a dryer inevitably leads to belt wear. This occurs due to friction and the heavy loads this component experiences during operation. Therefore, it's important to regularly check its condition and replace it if necessary to ensure the dryer operates efficiently.

Any skilled homeowner can handle this task. Hiring a professional to fix the problem isn't necessary. However, if you're unsure of your abilities, it's best to contact a professional service center.
