How to Replace a Samsung Washing Machine Drain Hose

What should you do if your drain hose urgently needs replacing? Call a technician or try to fix the problem yourself? The truth is, there's nothing complicated about the procedure. The Samsung washing machine manual describes it in detail.

We remove the old hose and install a new one.

If you discover even a small defect in your drain hose, you should replace it as soon as possible. A small crack can lead to a rupture after just a couple of cycles, resulting in flooding of your apartment and the neighbors below. It's better to avoid risks and install a new hose immediately. Especially since you can do the job yourself.

You can purchase a new drain hose at your local plumbing store, based on the model of your Samsung washing machine.

Before starting work, study the drain hose connection diagram. One end of the hose is connected to the sewer pipe or siphon, the other is screwed to the snail outlet. To disconnect the corrugated pipe from the pump, you will have to look under the Samsung washing machine.

Regarding the external connection, the Samsung washing machine's drain hose is connected either to the sewer pipe through a special tee or to a free nipple on the trap. Since the washing machine has already been installed, check where exactly the other end of the corrugated hose will be attached.

Before you begin replacing the drain hose, it is important to remember:

• de-energize the automatic machine;
• close the shut-off valve responsible for filling the machine with water;
• drain the remaining water from the system.

Liquid is drained from a Samsung washing machine through the waste filter opening. Here's how to proceed:

• Place a small container under the washing machine, in the area where the waste filter is located;
• unscrew the dustbin plug half a turn;
• collect water in a basin;
• remove the entire debris filter;
• Wait until all the water has drained into the container.

When replacing the drain hose, you'll need plenty of dry rags. It's best to place them under the machine. Water will leak when disconnecting the corrugated hose from the spigot.

To disconnect the drain hose from the pump housing, the washing machine must be laid on its side.

If your Samsung washing machine has a bottom, it must be removed. Some models are equipped with a special float sensor to prevent leaks. In this case, you'll need to disconnect the wiring before removing the tray.

This will allow free access to the drain hose connection. Next, you need to:

• Use pliers to loosen the clamps securing the corrugated pipe;
• detach the drain hose from the snail fitting.

Before attaching the new drain hose, clean any accumulated dirt from the pump housing. Connecting the hose is done in a similar manner:

• pull the corrugated pipe onto the snail pipe;
• Securely fasten the hose with clamps (it is important not to overtighten the clamps to avoid damaging the base of the hose).

Next, connect the AquaStop sensor wiring and replace the drain pan. The Samsung washing machine is now returned to its upright position. The other end of the new corrugated hose is connected to the pipe or fitting on the siphon. The drain hose should be free of kinks after installation.

Now you need to run a test wash. This will ensure the connection is correct and there are no leaks. Simply select the shortest cycle, such as "Rinse."

Even the slightest leak will require reconnecting the hose. The clamps may not be tight enough, or the corrugated hose may not be seated properly. If everything is dry, you can use the washing machine as usual.

Why change this part?

Why is it so important to replace a damaged drain hose promptly? Tens of liters of wastewater flow through it with each wash cycle. Therefore, the drain hose must always be in perfect condition to handle the load.

If you notice cracks starting to appear on the tube, don't delay replacing it. Install a new corrugated tube immediately. Operating a washing machine Samsung with a damaged drain hose is strictly prohibited. This can lead to flooding. Some users try covering the hole with tape or electrical tape—this measure might save the unit for a couple of cycles at most.

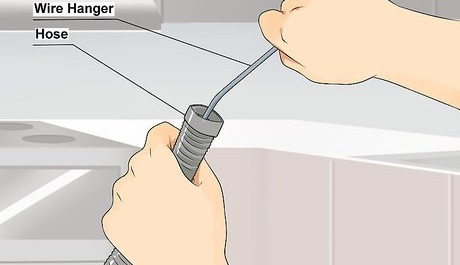

The drain hose often becomes clogged. In this case, replacing it isn't necessary; cleaning the element can solve the problem. Disconnect the hose from the housing and pipe and rinse it under high pressure water.

Replacement may be necessary when the drain hose is no longer long enough, for example, when moving the washing machine to a different location. Don't try to extend the hose—the more joints there are, the more likely it is to leak.

It's safer to purchase a new hose of sufficient length. However, it's important to remember that it shouldn't be longer than two meters. Otherwise, the pump will have difficulty pumping water into the sewer system, will work under increased load, and will fail faster.

Replacing the drain hose is easy, especially since the washing machine is already connected and there's no need to create a sewer connection. All you need to do is remove the old hose and install the new one, securely securing the joints with clamps.
