How to replace the heating element in a Candy washing machine

If your Candy washing machine isn't heating, the heating element is likely broken. This failure is often preceded by various errors appearing on the display, as well as poor heating. Users often ignore these warnings, which can lead to disastrous consequences. If your washing machine's heating element needs to be replaced, you need to take action soon.

Washing machine repair is quite a complex task, and not everyone can handle it. Whether you can do it yourself or need to call a technician depends on your experience with this type of repair. Let's take a closer look at this type of breakdown.

Let's start with preparation

Replacing a broken heating element in this type of washing machine doesn't require a large set of professional tools. The quality of the heating element also doesn't play a significant role. The main thing is that the new part fits the washing machine perfectly and is affordable.

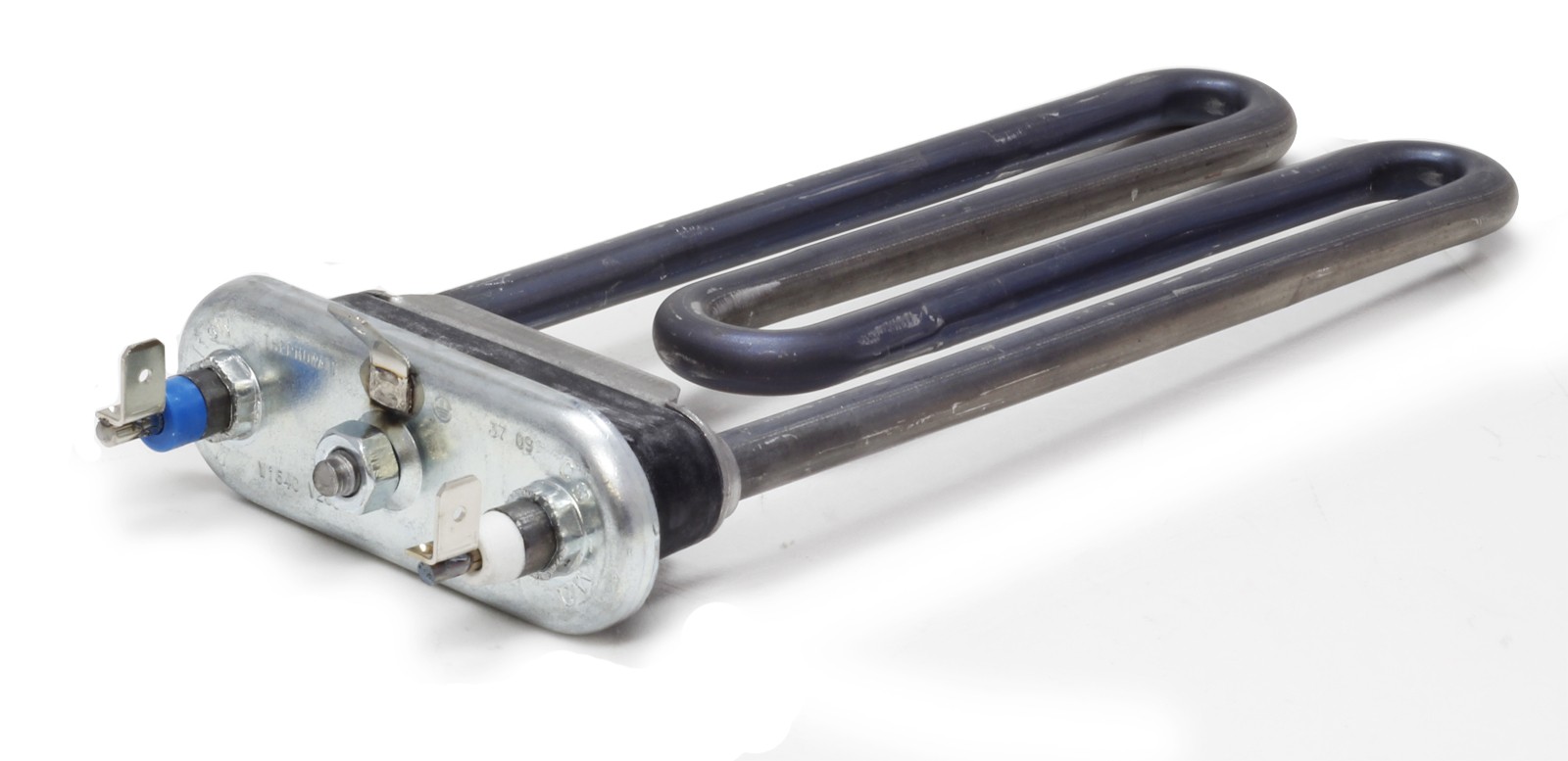

First, you need to determine the model of the heating element in your washing machine. It's a good idea to see the markings and symbols on it and write them down. If any numbers and letters are missing, it's best to take the broken part with you to the store. If this isn't possible, the most important thing is to determine the heating element's wattage. Typically, Candy machines use heating elements with a power of 1850 W, but some models have heating elements that are even more powerful.

You can buy a heating device without leaving your home. Many online stores now sell washing machine parts, making it easy to find the right part. The average price for such a part is around $10. For repairs, you'll need the following tools:

• ratchet with 8 mm head;
• a pair of screwdrivers (Phillips and flathead);
• multimeter;
• lubricant (any will do).

Why does it break and where is the part located?

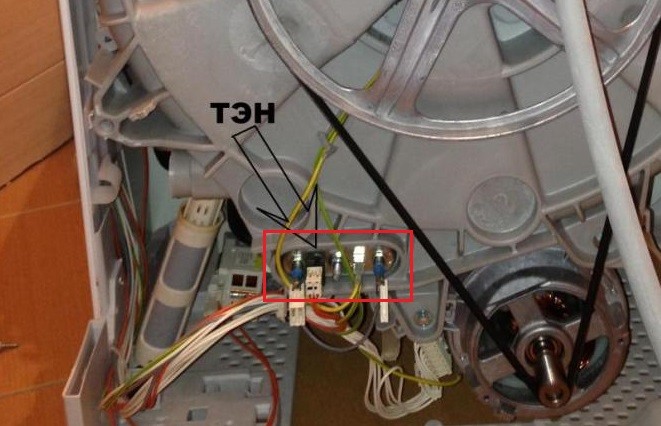

The heating element in the Candy, like in many other washing machines, is located underneath the drum. It can only be accessed by removing the rear panel of the washing machine. To do this, disconnect the appliance from the power supply and turn it so the back is facing you. Once the cover is removed, you'll see the element, but accessing it is difficult due to the drive belt, so for ease of use, it's best to remove it.

It's impossible to confuse the heating element with any other part, even though it's hidden inside the washing machine's drum. It's located exactly in the center of the drum's bottom, and a significant number of wires are connected to it. It's the first thing you notice when opening the back of the washing machine.

Heating elements in these washing machines are not uncommon. They can be easily purchased at almost any store. Difficulties may arise when replacing them. The main causes of heating element failure in Candy washing machines are:

• sharp voltage fluctuations in the electrical network;
• incorrect operation of the thermistor;
• malfunctions in the control module;
• heavily polluted or hard water;
• water getting on the contacts;
• user error;
• manufacturing defect.


The heating element can also fail due to a more significant malfunction of the washing machine, such as a malfunctioning control module. In this case, simply replacing the part will not produce the desired result.

If you suspect that the module is the cause of the problem, it is best to contact a professional technician.

Repair instructions

The first thing you need to do is make sure the washing machine is unplugged. Next, close the inlet valve and drain any remaining water. When tilting the machine, water can spill onto the components, which is undesirable.

The remaining water is drained through a filter. To do this, open the bottom hatch, unscrew the filter, and wait until all the water has drained. Don't forget about the water container, which must be prepared in advance and placed under the lower hatch.

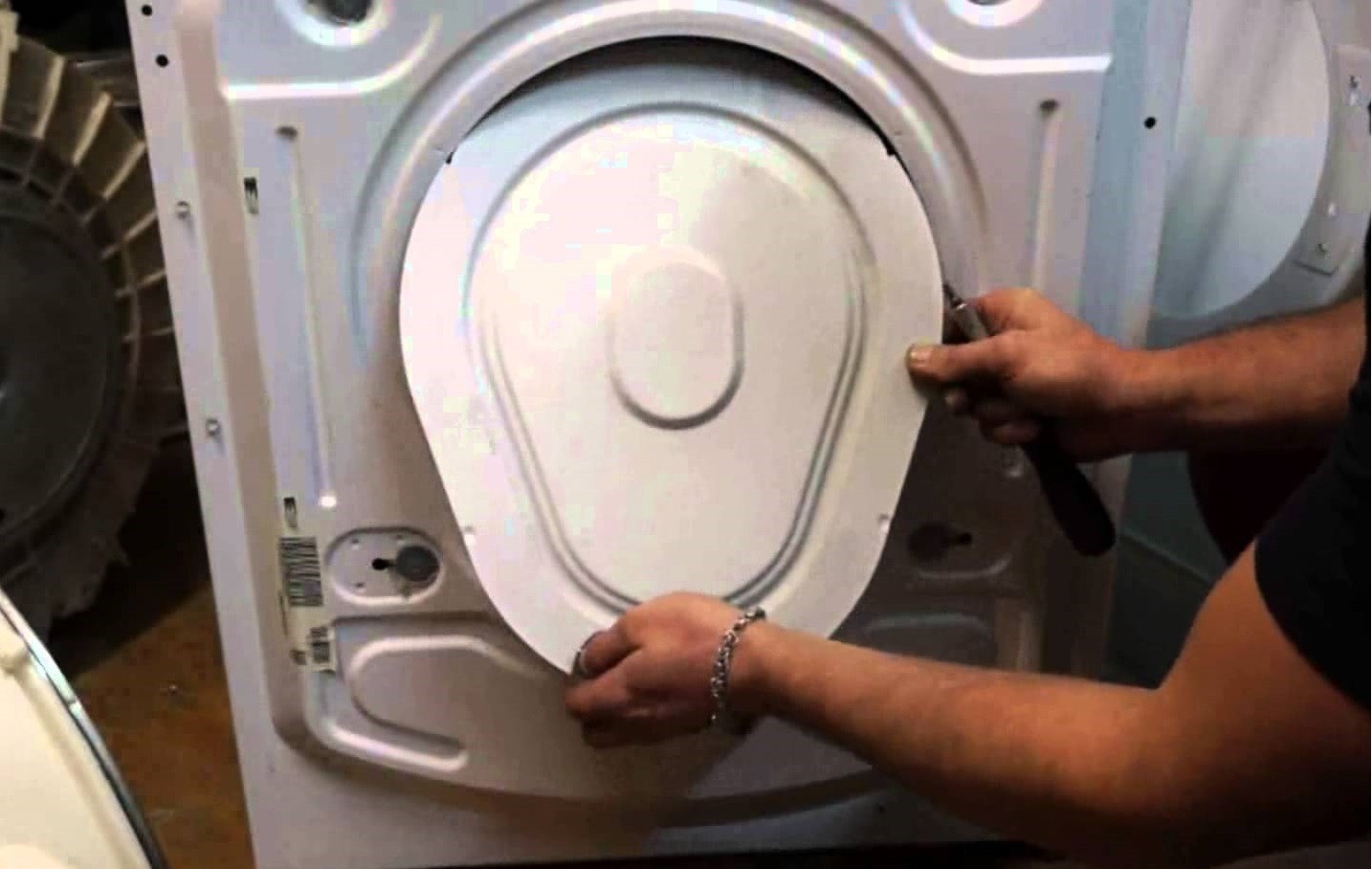

Before removing the heating element from the washing machine, the rear panel must be removed. To do this, unscrew the bolts located around the perimeter of the rear panel. The panel can be lifted slightly and removed.

Once access is gained, you can begin removing and then installing the heating element in your Candy washing machine. The element is located under the drum, and its seat is rounded. First, disconnect the power wires and verify the fault with a multimeter.

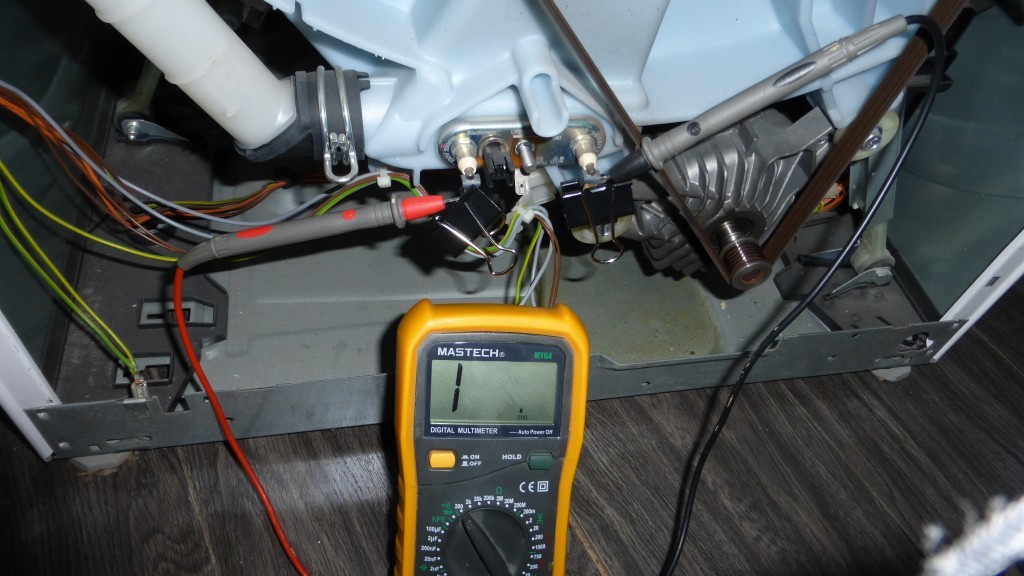

The multimeter measures the resistance, and this is the mode it should be set to. Then, the probes are applied to the contacts, and the device displays the readings. A functioning heating element should display a resistance in the range of 20 to 30 ohms.

The heating element is securely held in place by a pressure plate. To remove the heating element, loosen the central nut almost completely (it does not need to be removed). Push the bolt inward, and gently pry the base off with a screwdriver.

When dismantling, it's important to monitor the condition of the seal. Damaging it is strictly prohibited, as it will leak water.

After disassembly, carefully inspect the mounting socket. It should be smooth and clean, so remove any dirt or debris. Incorrect installation can cause damage to the washing machine. How do you install the heating element?

1. The nut needs to be screwed slightly onto the heater bolt.
2. Lubricate the heating element seal for easy fit.
3. Carefully place the device into the hole.
4. Securely fix with the clamping nut.
5. Connect the wires.

Once the work is complete, check for leaks and whether the heating element is heating the water. To do this, run a test wash at a temperature of at least 50 degrees Celsius. If everything is OK, the machine is safe to use.
