How to Replace a Heating Element in an LG Washing Machine

If your LG washing machine starts washing clothes in cold water, it means the heating element has burned out. To restore the machine's functionality, you'll need to replace the faulty part. This is an easy task to do yourself. We'll do our best to help you by describing the process in as much detail as possible.

Location of the part

First, you need to find out where the heating element is located in your LG washing machine. In this brand's washing machines, the heating element is located underneath the drum and is accessed through the rear panel. Therefore, simply disconnect the machine from the power supply and turn it so the back panel is facing you. Once the back panel of the LG washing machine is facing you, simply remove the panel and you'll have immediate access to the element.

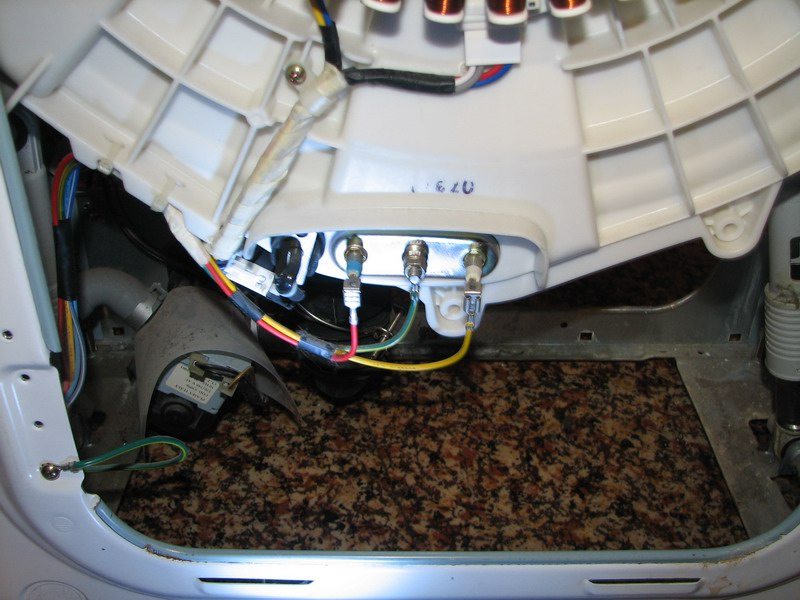

In this case, we won't even need a drive belt, since most LG washing machines have a direct drive, which means there's no need for a drive belt. Confused heating element of the washing machine LG with any other part is impossible. Although most of this component is recessed within the wash tub, two contacts protrude, connected to numerous wires. These contacts are located precisely in the center of the tub's bottom—open the back of the washing machine, and they're right under your nose.

In this case, finding the heating element in a washing machine of this brand is not a problem; difficulties may arise during its dismantling and installation.

What is needed for repairs?

The beauty of this type of washing machine is that replacing the heating element doesn't require a significant number of tools, and the only materials you need are a new, working heating element. This raises the first question: how do you buy a new heating element that's high-quality, fits perfectly, and is affordable?

First, inspect the old part for markings and markings. If you can see any letters or numbers, write them down on a piece of paper. Better yet, take the old heating element directly to a washing machine parts store. If that's not possible and the markings on the old heating element are not visible, at least determine its wattage. Typically, the power of the heating element of a washing machine brand LG 1900 or 1950 W, but sometimes you come across machines with 2000 W heating elements.

You can buy a new washing machine part not only in your hometown or village. You can order a good heating element online. Just be sure to avoid questionable websites and choose only top-tier, reputable online stores. The average cost of a new heating element is $10.

Typically, online stores selling washing machine parts are at the top of search engine results.

Now about the tools. There's not much to say here, as you'll only need:

• Phillips screwdriver;
• flat-head screwdriver;
• any lubricant;
• multimeter;
• 8 mm socket and ratchet.

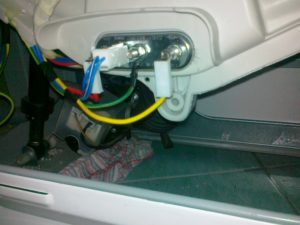

Changing the heater

Replacing the heating element of a washing machine of this brand will initially require removing the top cover of the washing machineOtherwise, it will be impossible to remove the back panel. Removing the top cover shouldn't be a problem, but if you do encounter difficulties, please read the instructions on our website.

Next, you need to remove the screws holding the back panel in place and then easily remove it. Now, grab your phone and take a photo of the wires on the heating element contacts to avoid any confusion later. Otherwise, you could easily burn out the new part, as well as the control board. The next step is to remove the wires from the heating element contacts and the thermistor.

We check the heating element with a multimeter. If you have problems with this, read the article called Checking the heating element of the washing machineThe verification features are described very well there. Next, we do the following.

1. We find a bolt with a nut in the center between the heating element contacts, put the head on the nut and unscrew it.
2. Using the ratchet handle, lightly tap the bolt until it falls in slightly.
3. Using a flat-blade screwdriver, carefully pry up the heating element, or more precisely, its sealing rubber.
4. After this, gently but firmly pull the heating element by the contacts until it comes out. It's best to remove it without breaking the contacts.
5. We inspect the old heating element and put it aside.
6. Using your fingers, remove any debris and dirt from the bottom of the tank, and then wipe the seat under the heating element with a rag.

Before installing a new heating element, check it with a multimeter in case it is defective.

7. We take a new heating element, lubricate its rubber seal, and then insert the part into place.
8. We make sure that the part fits tightly, tighten the nut and put on the wires, then assemble and connect the washing machine.

At this point, we can consider the replacement of the burned-out part successful. As you can see, this is a simple repair, theoretically feasible even for an amateur. However, when repairing a washing machine LG, remember safety precautionsBefore performing any manipulations, turn off the water and power supply – be vigilant, good luck!
