Replacing the heating element in an Indesit washing machine

A broken heating element in any washing machine, including Indesit, is immediately noticeable. After the first wash with a broken heating element, you'll notice that your laundry is dirty, as it was washed in cold water.

In modern washing machines, a broken heating element may prevent the washing process from starting at all. What should you do if this happens? It's simple: replace the heating element yourself, following the instructions.

Where is the heating element located?

Replacing the heating element in Indesit washing machines is fairly easy if you know how to hold a screwdriver and use a multimeter. The method for accessing the element varies depending on the machine. heating element, disassembling the equipment. Italian manufacturers have taken care of their consumers and installed the heating element in such a way that it can be accessed by opening the rear cover of the machine.

That's why this type of repair is considered simple. The only drawback is that the washing machine must be disconnected from all utilities. This is necessary so that the machine can be turned around for repairs.

What is needed for replacement?

Replacing the heating element on an Indesit washing machine requires minimal tools. Typically, two screwdrivers—a flat-head screwdriver, a Phillips-head screwdriver, and a socket wrench—are sufficient. You'll also need a multimeter or tester to check the heating element's functionality. And, of course, the original spare part.

Important! Don't buy Chinese-made parts; you won't save money, you'll just waste money, and you'll soon have to replace the heating element again.

Depending on the washing machine model, an original Italian-made heating element costs between $7 and $10, maybe a little more. It's better to save money on a technician's labor and try removing and replacing the heating element yourself. Of course, if the car is under warranty, then call a service center specialist; such repairs will be free.

Work order

And finally, we will describe the procedure for replacing the heating element.

1. Disconnect the machine from the power supply, sewerage system, and water supply.
2. Turn the machine with the back wall facing you.
3. Unscrew the bolts around the perimeter of the cover using a Phillips screwdriver.

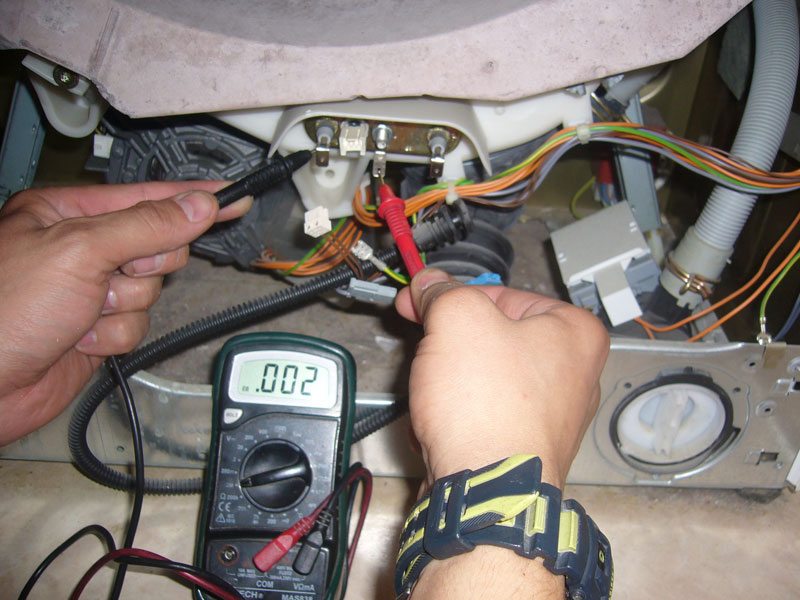

4. Below the tank, locate the contacts leading from the heating element and apply the multimeter probes to them. Normally, the resistance should be 25-35 ohms; otherwise, the part is faulty.

5. Disconnect all wires from the terminals, remembering their position.
6. Using a socket wrench, loosen the nut on the bolt whose end protrudes directly from the center of the heating element base.

7. Tap the bolt gently until it seats into the hole.
8. Use a flat-head screwdriver to pry the base of the heating element and pull it out towards you.
9. Take a new heating element and move the temperature sensor, which must be removed from the old heating element, into it.

10. Use a rag to clean the area under the heating element from debris.
11. Place the heating element in place and secure it with the bolt.
12. Connect the wires and close the back cover of the washing machine.
13. Connect the machine to the utilities.

So, as you can see, removing and replacing the heating element is easy. After replacing, check the operation of the appliance. Good luck!
