Electrolux washing machine frozen
If your Electrolux washer freezes during a wash cycle, don't panic or call a technician. You can fix your washing machine without the stress and expense of a technician. Simply unplug the machine, examine the typical malfunctions, assess the extent of the problem, and troubleshoot. A step-by-step guide with explanations and recommendations will help you save your machine.
Why did the equipment freeze?
It's easy to tell if your Electrolux washing machine is frozen. The drum stops, the LEDs on the dashboard go dark or flash erratically, and the system doesn't respond to user commands. Pressing buttons and turning the selector is useless - you need to act differently.
If the machine freezes, the first step is to rule out a technical glitch in the system. To do this, reset the machine: unplug it, wait 15-20 minutes, then reconnect it and try to start a cycle. If the error clears, the control panel lights up, and the washer prompts you to continue washing, there's no problem.
If rebooting doesn't help, the instructions will be different. First, empty the drum and only then begin troubleshooting. Simply turning on the "Drain" program won't work—if the machine freezes, you'll have to use the drain filter. The procedure is as follows:
- find the service hatch door located in the lower right corner of the body;
- carefully pry the door open and press the latches;

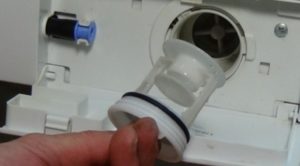

- find the emergency drain hose and the debris filter (black round plug);
- place a container underneath;
- activate the emergency drain or unscrew the waste filter;
- wait until all the water leaves the tank (at the “finish” the machine tilts forward slightly).
It is forbidden to open the machine with a full tank - all the water will flow out onto the floor!
Within 2-3 minutes of draining the water, the door locking device (HLD) will activate, allowing you to open the machine and remove items from the drum. Now we begin to identify the cause of the malfunction. It's important to understand that modern Electrolux machines are equipped with numerous components, sensors, instruments, and microchips. Everything is electronically controlled, and the failure of one component affects the operation of the entire appliance. Therefore, several malfunctions can simultaneously cause the system to freeze. These include:
- overloading or underloading the drum (each washing machine has a maximum and minimum load weight);
- Incorrect mode selection;
- problems with the UBL;
- clogged drain (drain hose, pump, waste filter);
- failure of the inlet valve;
- engine or pump failure;
- failure in electronics (control board, wiring).
The most serious malfunction is considered to be an electronic failure. In this case, DIY repairs are not recommended; it's safer and cheaper to contact a service center immediately. Fortunately, control board failures are rare; more often, users encounter problems that are easily repaired at home. We'll explain in more detail how to detect and fix them.
How to find a breakdown?
When the system suddenly freezes, it rarely displays an error code on the display – the Electrolux self-diagnostics do not have time to work. It is necessary to search for the fault manually, relying on logic, knowledge of the machine's structure, accompanying "symptoms" and the recommendations of the technicians. First, analyze the washing machine's behavior immediately before it stops. It's important to determine when the malfunction occurred: immediately after starting the program or during the wash cycle.
A frozen Electrolux should be immediately disconnected from the power supply and checked for faults!
If the washing machine stalls immediately after starting a cycle, it's likely the door lock or another electronic component has failed. The system immediately detects the problem and terminates abnormally, resulting in freezing. Other potential causes include an overloaded drum or an incorrectly selected program. However, experience shows that the machine displays an error code before shutting down in response to such user errors.
The most common malfunction that causes the door lock to freeze is a malfunctioning door lock. The self-diagnostic system only warns the user of the error in rare cases; in most cases, the board fails immediately and goes silent. Checking the door lock's functionality is easy: just try to unlock the hatch. If the handle gives way, the electronic lock has failed and requires repair. A closed door indicates otherwise.
The control module can also fail at startup. Home diagnostics are too risky here—one wrong move could lead to a fatal outcome. It's best to avoid experimenting and have the board checked by experienced repairmen. Specialists will test the electronic unit using the following steps:
- disconnect the board from the housing (pull out the detergent tray, unscrew the bolts holding the instrument panel and release the wiring connected to the module);
- carefully inspect and test each element of the board one by one with a multimeter;
- If necessary, the block software will be re-uploaded.
If your washing machine stops and freezes mid-cycle, the problem lies with the valve, motor, or drain. A more precise diagnosis can be made by analyzing the machine's behavior before shutting down. It's important to listen to the braking sound, the current cycle stage, and the error message or code displayed on the screen. This will help you determine what caused the malfunction. One of three typical scenarios can occur.

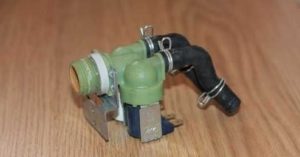

- The machine started, the program was activated, the door closed, and the machine began humming. After 2-3 minutes, the humming changed to a hissing and a quiet crackling sound, then the dashboard went dark and froze. It's logical that the malfunction was caused by a problem with the water intake. Perhaps the inlet valve was broken, the inlet hose was clogged, or there was some other problem with the water supply.
- The washing machine started, water filled the drum, but the drum remained motionless. It tried to spin up a few times, then began humming loudly, cracking, and finally froze. Clearly there was a problem with the motor.
- The machine turned on, accepted user settings, filled with water, spun the drum, and began washing. However, when switching to the rinse or spin cycle, something went wrong. The machine hummed as it attempted to drain, failed, and froze. All indications point to a problem with the drain, debris filter, impeller, or pump.
To restore the machine to working order, you'll need to check for the possible cause of the malfunction. Partially disassemble the machine to access the valve, motor, or pump, and test them for proper operation. There is no need to remove the parts from the housing; simply connect the probes of a multimeter set to ohmmeter mode to the contacts. It's easy to reach the pump and engine: tilt the machine back a little, remove the pan, and find the parts you're looking for.
Is it possible to repair it yourself?
Identifying the cause of the freeze isn't enough. It's important not only to identify the problem but also to fix it. While it seems simple in theory, in practice, many novice mechanics encounter difficulties. This stems from ignorance, haste, and failure to follow instructions.
There's no need to be afraid of DIY repairs. However, it's important to assess your capabilities and avoid unnecessary risks with your Electrolux. While it's unreasonable to attempt home diagnostics if you suspect faulty electronics, clearing a clogged drain or replacing a pump or motor is entirely possible.
A clogged drain is one of the easily remedied problems. To solve it, simply disconnect and flush the drain hose, remove and clean the drain filter, or clear debris from the pump. The inlet valve is also easy to fix. What should you do?
- Turn off the power to the washing machine.
- Remove the top cover.
- Release the valve from the wires.
- Remove the valve.
- Install a new one.
A system freeze isn't always a serious problem. It could be a one-time glitch or a clogged drain. The main thing is to follow the instructions.
