Electrolux dishwasher symbols

After connecting the appliance, users are usually eager to try out their new dishwasher. The first cycle always starts empty, and then they can load their "home helper" to the brim. But before using the appliance, it's worth understanding the symbols on the control panel. The icons on the Electrolux dishwasher indicate washing programs. To understand which program is being used, let's look at the main symbols.

Where to look for icons, buttons and lights?

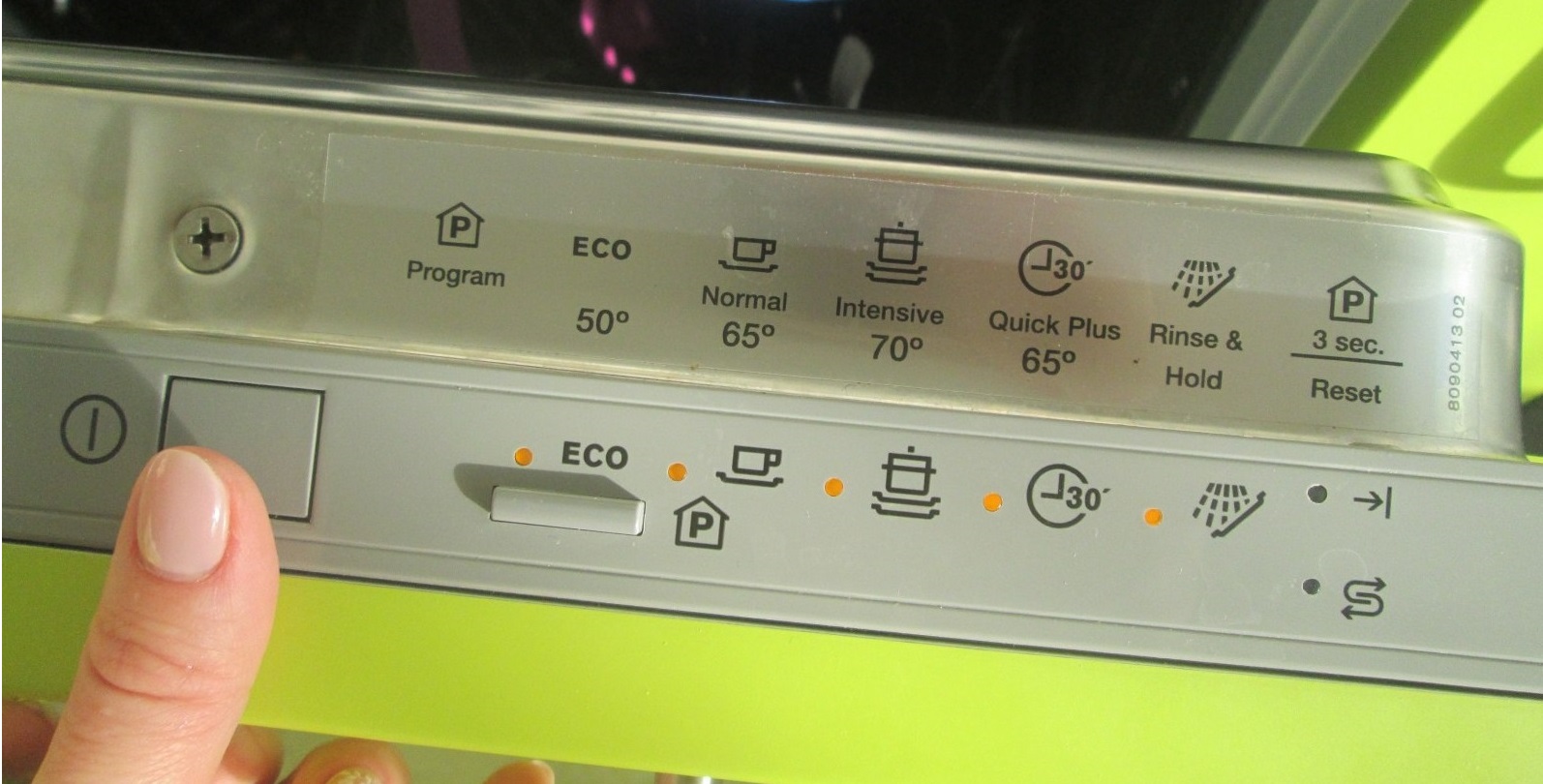

The layout of the control panel varies depending on the Electrolux dishwasher model. On built-in dishwashers, the indicators and icons are located on the edge of the door. It's impossible to miss the symbols indicating the cleaning programs.

When it comes to freestanding dishwashers, the "dashboard" is most often located on the front part. The symbols on the panel are usually not labeled, so if you don't understand the symbol, it's best to consult the dishwasher's instructions. In most cases, the purpose of the buttons is understood intuitively by users.

In any case, it's recommended to read the dishwasher's manual before using it for the first time. If you bought the appliance second-hand and lost the manual, you can find a description of the model online. Let's look at the symbols found on most Electrolux dishwashers.

PMM Electrolux badges

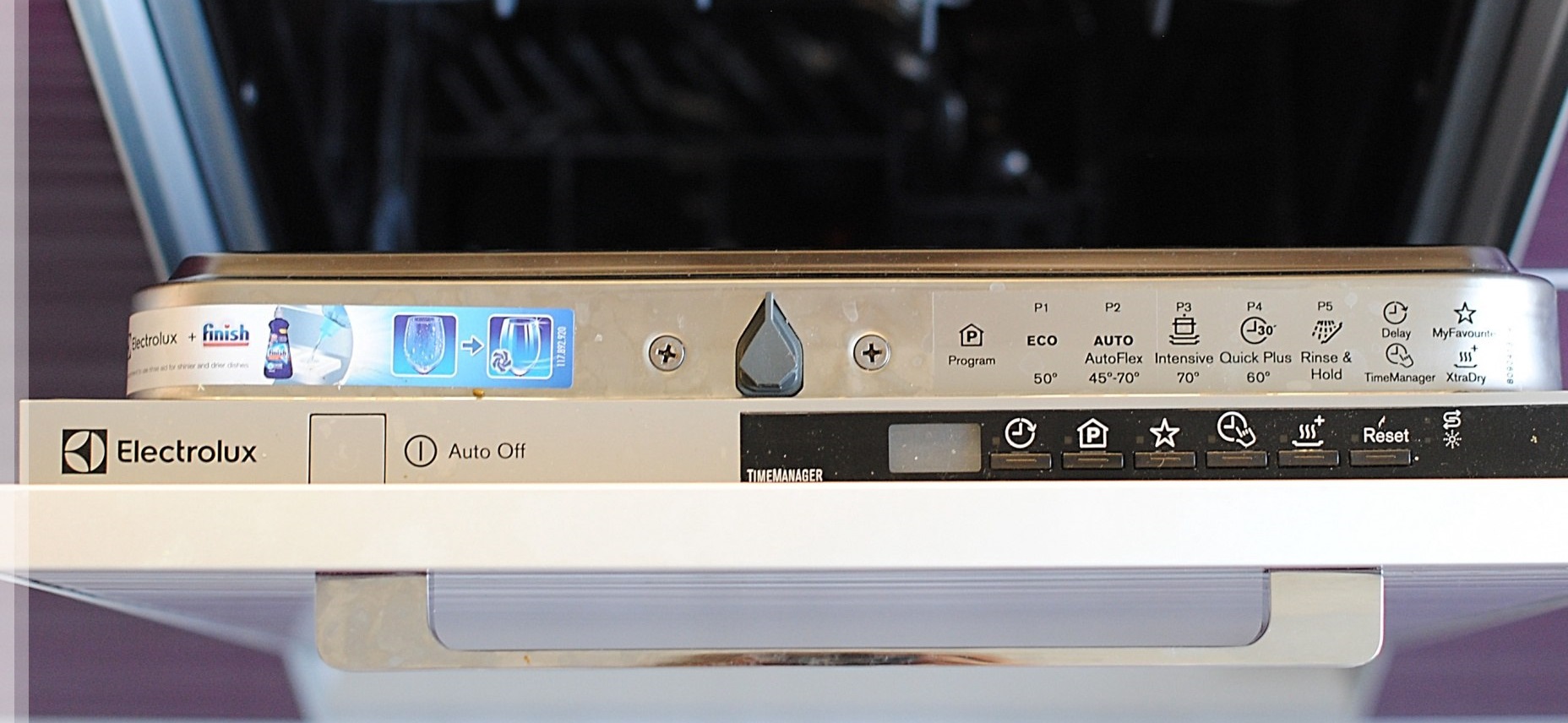

On the control panel of Electrolux dishwashers, next to the program icon, the temperature to which the water is heated is also indicated. This significantly simplifies the "puzzle." Many users rely solely on the temperature. Let's look at the main symbols found on Swedish dishwashers.

• Symbol of a saucepan and a pair of plates, 70°C. "Intensive." This is the longest cycle, recommended for heavily soiled dishes. Suitable for cleaning plates, pots, pans, and baking sheets. The program includes several stages: pre-soak, main wash, rinse, and dry.
• A mug icon with a plate underneath, 65°C. "Normal." The most "everyday" program. Designed for washing dishes without any heavy soiling. The water is heated to 65 degrees. The cycle stages are the same as the intensive mode.
• Clock symbol, 65°C. Quick wash in hot water. Suitable for lightly soiled cutlery.
• Shrub-like pattern, 50°C. Eco mode, suitable for washing moderately soiled utensils.
• Shower symbol. This program provides an extra rinse for dishes. No detergent is required when selecting this mode.

Even without knowing the exact names of the symbols on the control panel, it's not hard to guess when to use a particular cycle. If the dishes are heavily soiled, it's best to select a higher temperature. A quick cycle is sufficient for washing cups and plates after breakfast.

Electrolux dishwasher models available for purchase

The Swedish manufacturer offers a wide range of dishwashers. Electrolux's lineup covers a wide range of price points, from budget models to premium appliances. We'll tell you which dishwashers are the most popular.

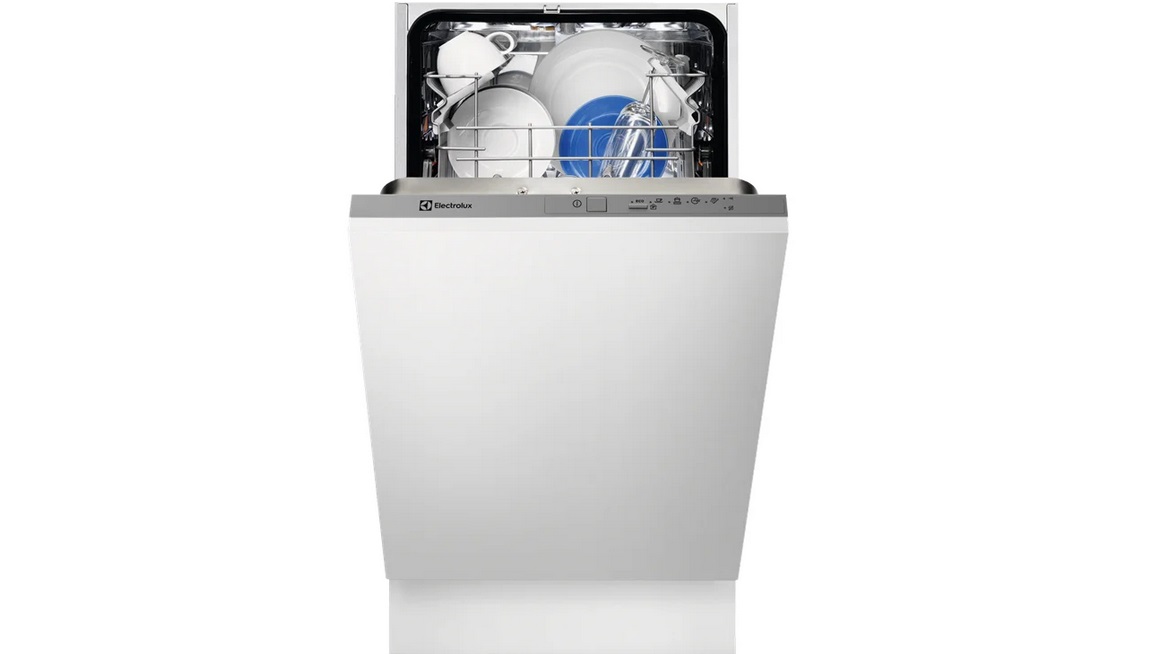

Among affordable dishwashers, customers recommend the Electrolux ESL 9420. This slim built-in model costs around $250. Despite its compact size, it can wash up to nine place settings at a time, enough for the average family of four.

The Electrolux ESL 9420 has 5 pre-programmed modes, allowing you to select the optimal washing parameters depending on the type of dishes and the degree of contamination.

These include a standard program for everyday use, an intensive option, an express cycle, and an economy mode. The fifth function is pre-soak.

The AquaControl system protects the dishwasher from leaks, making it extremely safe to use. The "Delayed Start" option (up to 3 hours) allows you to postpone the cycle until a convenient time. The machine boasts a high energy efficiency rating of "A."

The Electrolux ESL 9420 dishwasher features a salt and rinse aid refill indicator. This helps you know when to refill. Water consumption per wash cycle is only 10 liters.

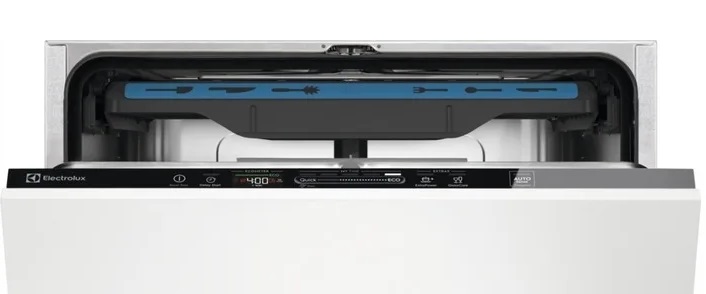

Another reliable and acclaimed model is the Electrolux ETM 48320 L. This full-size dishwasher holds up to 14 place settings. It boasts the highest energy efficiency rating of A+++, meaning it consumes minimal kilowatts.

Among the main advantages of the Electrolux ETM 48320 L, users note:

• high quality washing;
• software "stuffing";
• large capacity of the washing chamber;
• availability of AirDry drying function;
• easy, intuitive control;
• automatic door opening at the end of the cycle;
• virtually silent operation of the machine.

A delayed start timer is available for 1 to 24 hours. The machine is equipped with a water purity sensor and a salt and rinse aid refill indicator. The interior is made of stainless steel, and the upper basket is height-adjustable.

Water consumption per standard cycle is no more than 10 liters. There are eight wash modes, including intensive, normal, quick, delicate, and a pre-soak function. The model costs approximately $450.

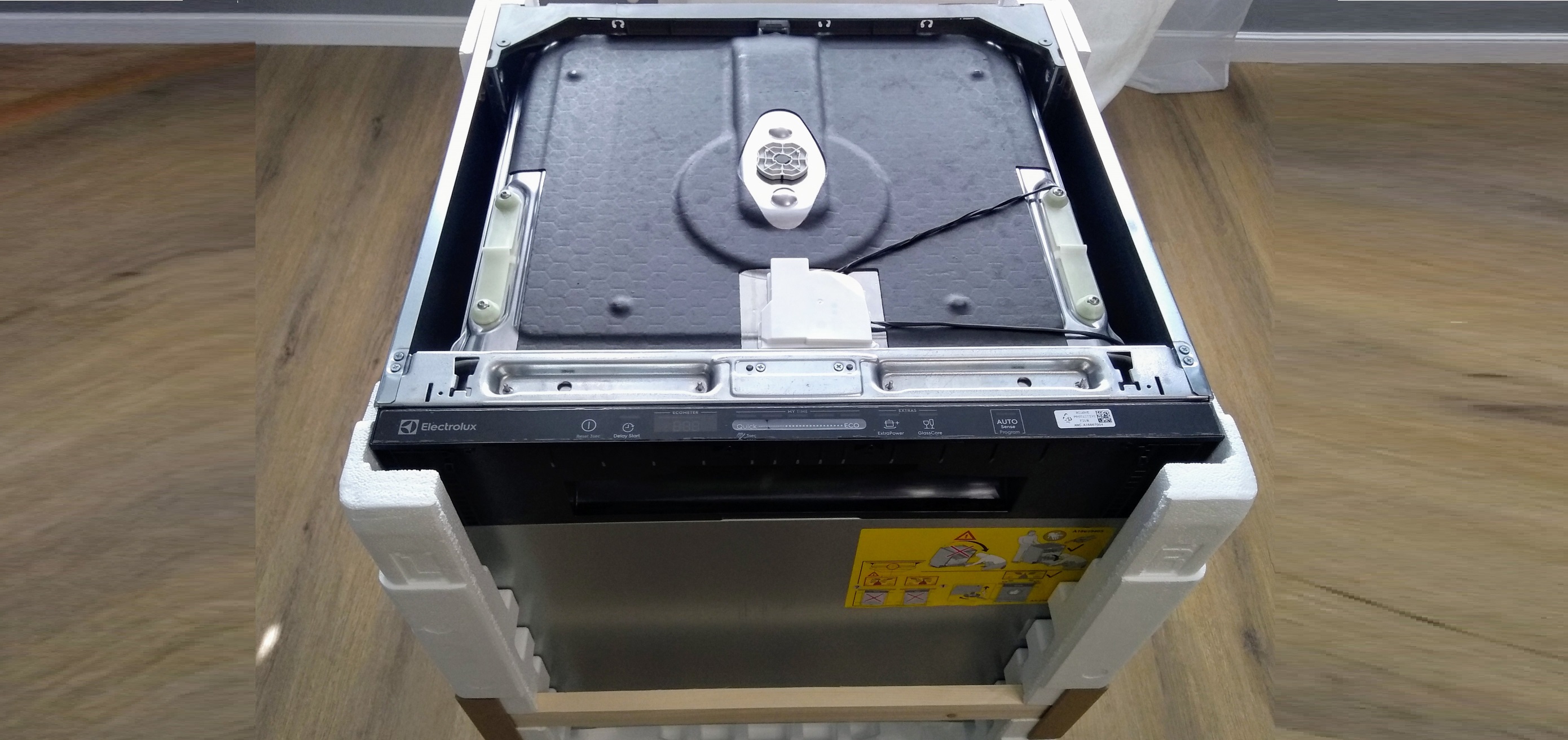

Another worthy model that has earned many positive reviews is the Electrolux EES 948300 L. This built-in dishwasher from a Swedish brand can wash up to 14 place settings at a time, using only 10.5 liters of water. Equipped with a modern inverter motor, which is characterized by increased reliability.

The main advantages of the Electrolux EES 948300 L dishwasher:

• spacious working chamber;
• 8 washing programs;
• 3 temperature modes;
• condensation drying;
• delayed start timer for up to 24 hours;
• water purity sensor;
• self-cleaning function of the working chamber;
• Automatic door opening system.

A modern model costs approximately $420–$430. It has the highest energy efficiency rating, consuming 0.83 kWh per cycle. It offers partial leak protection. The dishwasher's working chamber is made of stainless steel.
